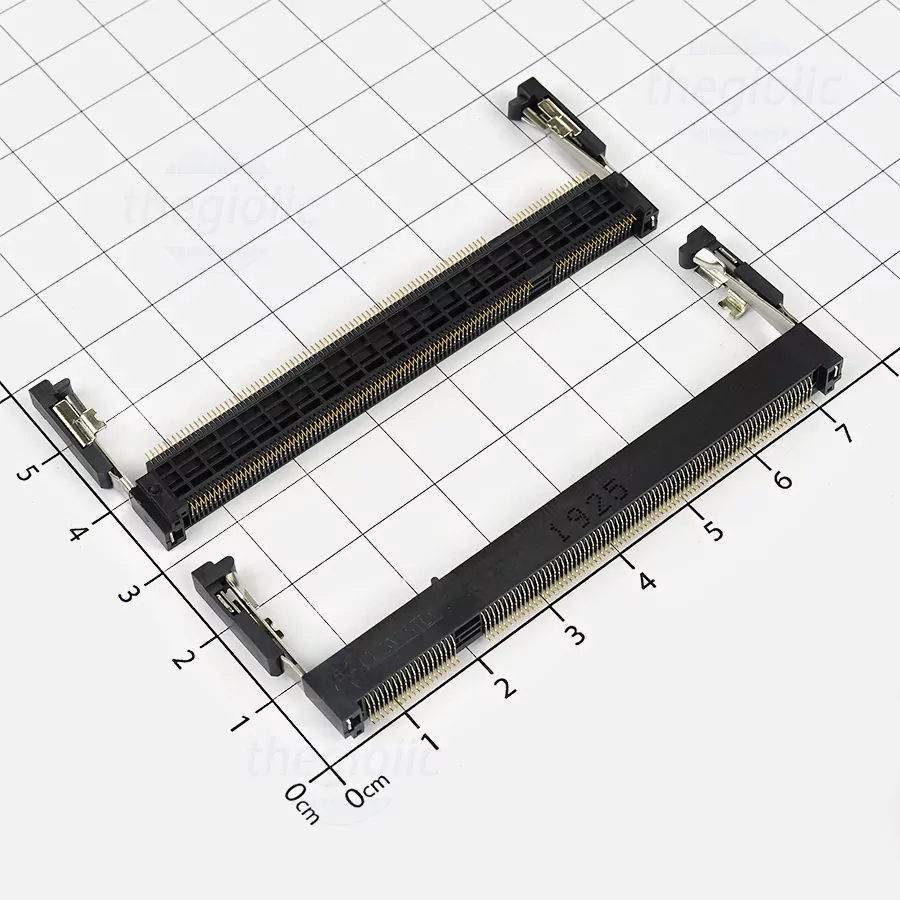

Product Type Features:

• Socket Style = SO DIMM
• DRAM Type = Double Data Rate (DDR)
• PCB Mount Style = Surface Mount
• Module Orientation = Right Angle
• Profile = Standard

Mechanical Attachment:

• Keying = Standard

Electrical Characteristics:

• DRAM Voltage = 1.8 V

Termination Features:

• Solder Tail Contact Plating = Gold Flash

Body Features:

• Socket Type = Memory Card
• Number of Positions = 200
• Row-to-Row Spacing (mm [in]) = 6.20 [0.244]
• Centerline (mm [in]) = 0.60 [0.024]
• Number of Rows = Dual
• Ejector Type = Locking
• Ejector Location = Both Ends
• Number of Keys = 1
• Latch Material = Stainless Steel
• Latch Plating = Tin
• Boss = With
• Mount Type = Printed Circuit Board

Contact Features:

• Contact Plating, Mating Area, Material = Gold Flash
• Contact Base Material = Copper Alloy

Housing Features:

• Housing Material = High Temperature Thermoplastic
• Housing Color = Black
• UL Flammability Rating = UL 94V-0

Configuration Features:

• Stack Height (mm [in]) = 5.20 [0.205]
• Insertion Style = Cam-In
• Center Key (mm [in]) = None

Industry Standards:

• RoHS/ELV Compliance = RoHS compliant, ELV compliant
• Lead Free Solder Processes = Reflow solder capable to 245°C
• RoHS/ELV Compliance History = Always was RoHS compliant

Operation/Application:

• Application Type = DDR SDRAM
